Qiymət
256 azn
Stokda sayı
100 ədəd
DS-2CD1H43G0-IZ
Haqqında

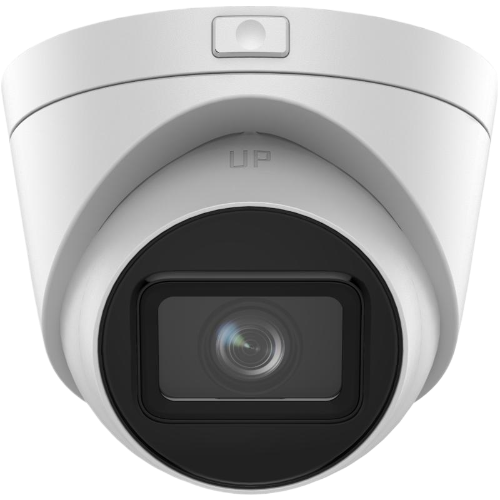

DS-2CD1H43G0-IZ 2,8-12mm 4mp IR30m VF Turret IP KAMERA HIKVISION
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting due to 120 dB WDR
- Up to 256 GB SD card slot for storage
- Water and dust resistant (IP67)
- EXIR 2.0: advanced infrared technology with long IR range
| Növ | IP |
| Megapixel | 4 MP |
| Obyektiv | Motorized |
| Fokus | 2.7-13.5 |
| İşıqlandırma | LED |
| İşıqlandırma məsafəsi | 30 m |
| Qoruma | IP67 |
| Material | Plastik |
Ətraflı
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 355°,tilt: 0° to 70°, rotation: 0° to 355° |
| Lens | |
| Lens Type | Varifocal Lens,motoried lens, 2.8 to 12 mm |
| Focal Length& FOV |
2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV54° to 17°,diagonal FOV 123°to 35° |
| Lens Mount | Ø14 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Illuminator | |
| IR Wavelength | 850 nm |
| IR Range | Up to 30 m |
| Video | |
|
Main Stream |
50 Hz:20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280× 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080,1280 × 720) |
| Sub-Stream |
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480,640 × 360) |
| Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Region of Interest (ROI) | 1 fixed regionfor main stream |
| Audio | |
| Audio Compression | -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate |
-S: 64 Kbps(G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) |
| Audio Sampling Rate | -S: 8 kHz/16kHz |
| Environment NoiseFiltering | -S: Yes |
| Network | |
| Protocols |
TCP/IP, ICMP,HTTP, HTTPS, FTP,DHCP, DNS, DDNS,RTP, RTSP, RTCP,NTP, UPnP™, SMTP, IGMP,802.1X, QoS, IPv6,Bonjour, IPv4, UDP,SSL/TLS |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network VideoInterface, ISAPI |
| User/Host | Up to 32 users. 3 levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect |
|
Web Browser |
Plug-in required liveview: IE 10+ Plug-in free live view:Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox52.0+ |
| Image | |
| Image Settings |
Saturation, brightness, contrast, sharpness, AGC,white balance adjustable by client software or web browser |
| Day/Night Switch | Auto, Schedule, Day,Night |
| Image Enhancement | BLC, 3D DNR |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
|
Audio |
-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output(line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | -S: 1 input,1output, max. 12 VDC, 30 mA |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection, video tampering alarm,exception |
| Linkage |
Upload to FTP,notify surveillance center,send email, upload to memory card,trigger recording, trigger capture |
| General | |
| Power |
12 VDC ±25%, 0.75 A, max. 9 W, Ø5.5mm coaxial powerplug PoE: 802.3af, Class 3, 36 V to 57 V, 0.27A to 0.17 A, max. 10 W |
| Camera Material | Cover: plastic, main body:metal |
| Camera Dimension | Ø129.4 mm × 116.4 mm (Ø5.1" × 4.6") |
| Package Dimension | 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9") |
| Camera Weight | Approx. 560 g (1.2 lb.) |
| With PackageWeight | Approx. 850g (1.9 lb.) |
| Storage Conditions |
-30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing) |
|
Startup and Operating Conditions |
-30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less(non-condensing) |
| Language | English, Ukrainian |
| General Function |
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Approval | |
|
EMC |
FCC SDoC(47 CFR Part 15, SubpartB); CE-EMC (EN55032: 2015, EN 61000-3-2: 2014,EN 61000-3-3: 2013,EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32:2015); IC VoC (ICES-003: Issue6, 2016); KC (KN 32: 2015,KN 35: 2015) |
|
Safety |
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013,IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009+ Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
|
Environment |
CE-RoHS (2011/65/EU); WEEE(2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Electrical SafetyProtection | IP67 (IEC60529-2013) |
