Qiymət
270 azn
Stokda sayı
12 ədəd

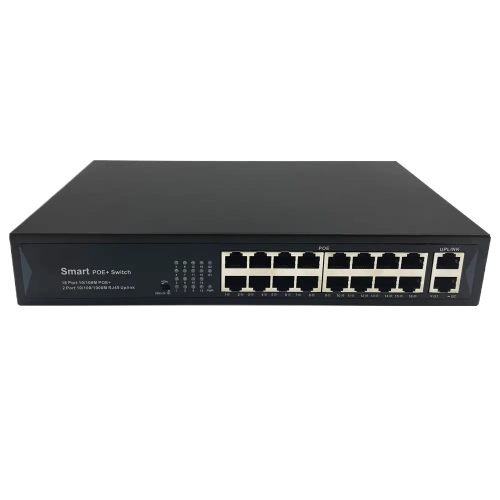

Switch JHA-P302016CBMHGW
Haqqında
Unmanaged PoE switch, 16* 10/100M PoE ports+2* 10/100/1000M uplink RJ45 ports
- 16*10/100M + 2*10/100/1000M RJ45 Smart PoE Switch ports, ports 1-16 support IEEE 802.3 af/at
- Complies with IEEE 802.3, IEEE 802.3 u standards
- The PoE port supports intelligent AF/AT recognition. Standard power is 15.4 W / port. Maximum power: 30W/port
- The total power of the power supply unit is 250 W
| Port Sayi | 16 Port |
| Port sürəti | 100mbp/s |
| PoE | PoE |
| Tip | Unmanaged |
Ətraflı
|
Model |
JHA-P302016CBMHGW |
|
InterfaceWithspecifications |
|
|
Fixed Port |
16 10 / 100Base-TX PoE ports (data/power) 2 uplink RJ45 10/100 / 1000Base-T ports (data) |
|
Ethernet port |
Ports 1-16 support 10 / 100Base-TX, and ports 17-18 can support 10/100/1000Base-T(X) auto-detection, full/half-duplex MDI/MDI-X auto-detection. |
|
Twisted pair transmission |
10BASE-T: Cat3, 4, 5 UTP (≤250 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
Function switch
|
Function switch 100m and 250m. OFF by default. |
|
If the "100 m" option is enabled, the default transmission is 100 m. |
|
|
When enabled at 250 m, ports 9-16 support long-distance transmission of 10 m/250 m. |
|
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10BASE-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x |
|
Forwarding mode |
Save and forward (full wire speed) |
|
Switching capacity |
14.8 Gbps (non-blocking) |
|
Forwarding information Speed @ 64 bytes |
5.36 million packets per second |
|
MAC |
16K |
|
Buffer memory |
4M |
|
Jumbo frame |
10 thousand rubles. |
|
LED indicator light |
Power: PWR (Green), Network: Link (Green), PoE: PoE (Green) |
|
PoE and power supply |
|
|
PoE port |
IEEE802.3af/at Ports 1 to 16 |
|
Power supply contact |
1/2 (+) 3/6 ( -) 2 pairs of power supply |
|
Maximum power per port |
30 W, IEEE802. 3af/at |
|
Total power/input voltage |
250W (100-240V AC)/180W optional |
|
Power consumption |
Standby mode |
|
Power supply |
Built-in power supply, 100-240 VAC, 50-60 Hz, 5.0 A. |
|
Physical addressPparameter |
|
|
Using TEMP/Humidity |
-20~+55°C, relative humidity 5%~90%, non-condensing |
|
Storage temperature/Humidity |
-40~+75°C, relative humidity 5%~95%, non-condensing |
|
Size (L*W*H) |
270*181*44,5 mm |
|
Net/Gross weight |
|
|
Installation |
Desktop, wall-mounted, rack-mounted |
|
Certification process& Inwarranty |
|
|
Lightning protection |
Port lightning protection: 4 kV 8/20 microseconds, protection level: IP30 |
|
Certification process |
CCC, CE mark, Commercial, CE/LVD EN62368-1, FCC Part 15, Class B, RoHS |
