Qiymət
0.95865 azn
Stokda
1000 ədəd

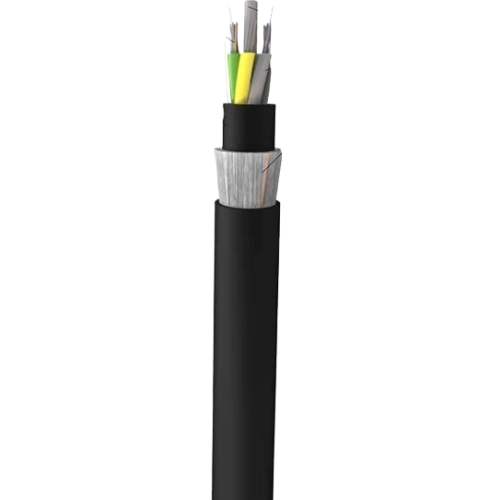

GYFXTS Outdoor Aramid Yarn 24C
Haqqında
GYFXTS outdoor aramid yarn MDPE Jacket 24C Single Mode,3km/drum
Ətraflı
|
Geometric Characteristics |
|
| Cladding Diameter μm | 125.0±1 |
| Cladding Non-circularity% | ≤1.0 |
| Coating Diameter μm | 245±10 |
|
Coating/Cladding Concentricity error μm |
≤12.5 |
| Coating Non-circularity % | ≤6 |
| Core/Cladding Concentricity Error μm | ≤0.6 |
| Warpage | ≥4m |
|
Optical Characteristics |
|
| Mode Field Diameter | 1310nm - 9.2±0.6μm 1550nm - 10.4±0.6μm |
| Attenuation dB/km | 1310nm - ≤0.36 1550nm - ≤0.22 |
|
Attenuation Discontinuity |
1310nm - ≤0.05 1550nm - ≤0.05 |
| PMD | ≤0.2ps/(km1/2) |
| PMDq | ≤0.1ps/(km1/2) |
| Zero-dispersion Wavelength nm | 1312±12 |
| Zero-dispersion Slope | ≤0.091ps/(nm2.km) |
| Cutoff wavelength nm | ≤1260 |
Fiber Optic Cable Structure Dimensions
|
Core Counts |
Bundle |
Cores per |
Strength |
Reference |
Reference |
| 8 | 2.8±0.2 | 8 | Glass Yarn | 7.5±0.3 | 57±15% |
| 12 | 2.8±0.2 | 12 | Glass Yarn | 7.5±0.3 | 57±15% |
| 24 | 2.8±0.2 | 24 | Glass Yarn | 7.5±0.3 | 57±15% |
