DMA6112 120W Amplifier
Haqqında

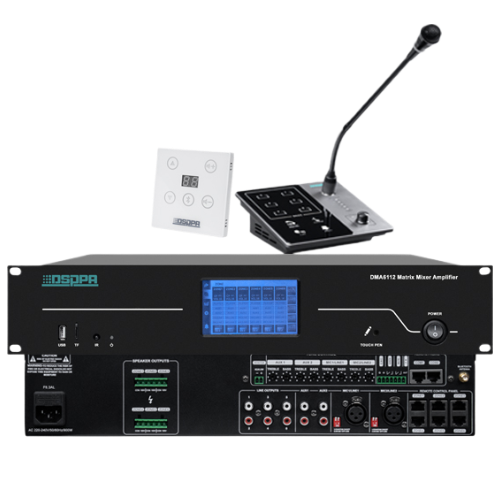

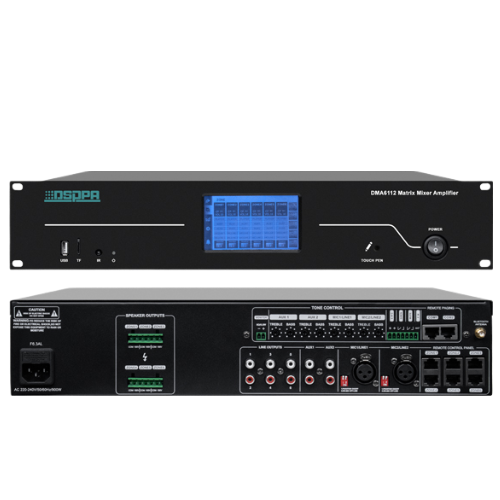

DMA6112 120W 6 Channels Digital Audio Matrix Amplifier with Remote Control
● With a 4.3" resistive touch screen and a push-button power switch.
● Support 100V constant voltage function, configurable through the system.
● Chime function operable via the touch screen, with chimes and SIREN alarm sources changeable through USB.
● With 1×3.81mm Phoenix connector (1P of 7P) for FM antenna.
● With 1×3.81mm Phoenix connector (2P of 7P) for EMC IN.
● With 1×3.81mm Phoenix connector (2P of 7P) for MUTE.
● With 1×3.81mm Phoenix connector for MONITOR SPEAKER OUTPUT, to monitor signal output, linked with zone volume.
● With 6×2-pin 5.08mm terminal block power output interfaces.
● With one independent Bluetooth antenna.
● Designed for AC220-240V power supply.
| Power | 120 W |
Ətraflı
|
Model |
DMA6112 |
|
AUX Input Sensitivity |
AUX1=AUX2=775±100mV |
|
MIC Input Sensitivity |
MIC1=MIC2=5±1mV |
|
LINE Input Sensitivity |
LINE1=LINE2=350±50mV |
|
Output Power |
120W*6 |
|
Distortion at Rated Power (Within Frequency Response Range) |
95V<1% 100V<5% |
|
Microphone S/N Ratio A-Weighted |
≥71dB |
|
Line S/N Ratio A-Weighted |
≥76dB |
|
Line Input Frequency Response |
80Hz-15kHz (under normal operating conditions ±3dB) |
|
Overload Source Electromotive Force |
≧14dB (constant voltage) |
|
Operating Voltage |
AC220-240V |
|
Tone Adjustment Range |
Bass: ±10dB (100Hz), Treble: ±10dB (10kHz), both with an error of ±2dB |
|
LINE OUT Output Level |
1000±100mV |
|
MIC1-2 Phantom Power |
48V±5V |
|
Operating Temperature |
-10-50℃ |
|
Package Dimensions |
535×540×155mm |
|
Machine Dimensions |
483×353×88mm |
|
Gross Weight |
8.45kg |
|
Net Weight |
6.95kg |
