DSP9101 IP Remote Paging Station
Haqqında
DSP9101 IP Remote Paging Station

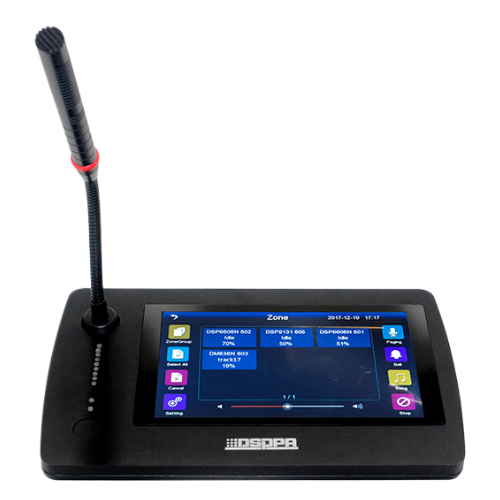

● 7" TFT true-color LCD + capacitive touch screen，supporting five-point touch control.
● Controlling up to 200 partitions，with the function of opening all partitions by touching one button.
● The function of partition paging and group partition.
● Displaying the partition and group to be focused on as required.
● Checking the information on status of the partition.
● With the function of multi-section level indication，resulting in more intuitive paging sound pressure.
● Broadcasting the songs in the program database of the host to the partitions.
● With the function of keeping every paging record.
Ətraflı
|
Model |
Parameters |
|
|
Support Protocol |
TCP/IP, ICMP, IGMP (multicast) |
|
|
AUX IN |
Input Impedance |
＞10kΩ |
|
Input Sensitivity |
-10dB (1V) |
|
|
Frequency Response |
20Hz-20kHz |
|
|
AUX OUT |
Output Sensitivity |
＜100Ω |
|
Output Amplitude |
1.0±0.1V |
|
|
Frequency Response |
20Hz-20kHz |
|
|
Distortion |
≤0.1% |
|
|
S/N Ratio |
≥81dB |
|
|
MIC IN |
Input Sensitivity |
40±10mV |
|
Distortion |
≤0.5% |
|
|
Effective Frequency Range of Gain Limit (±3dB) |
80Hz-10kHz |
|
|
S/N Ratio (30K low-pass) |
≥75dB |
|
|
Interface |
Network Interface |
RJ45 (10/100M) |
|
Audio Unput Interface |
3.5mm headphone jack |
|
|
Audio Output Interface |
3.5mm headphone jack |
|
|
Others |
Input Power |
DC12V |
|
Operating Temperature |
-20 - +55℃ |
|
|
Package Size (H×W×D) |
170×290×185mm |
|
|
Product Size (H×W×D) |
65×240×150mm |
|
|
Gross Weight |
2.5KG |
|
|
Net Weight |
1.3KG |
|
