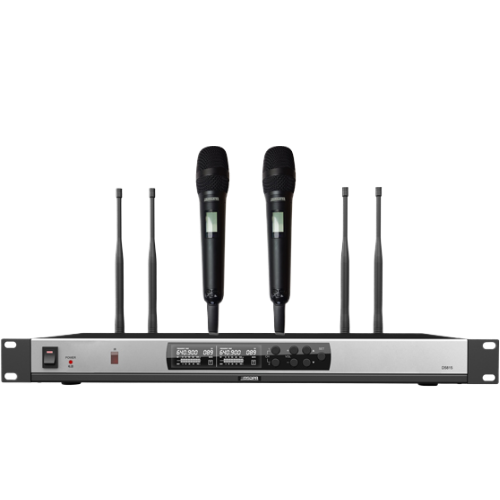

D5815 Wireless Microphone
Haqqında
D5815 True Diversity Wireless Microphone
● Dual-channel PLL design.
● UHF200 channel PLL digital lock automatic communication function.
● Adopt IR frequency pairing.
● With display screen (to display frequency, channel, squelch, level, etc.).
● With volume control for each channel.
● AF output (using “XLR” sockets for separate output and mixed output).
Ətraflı
|
System Indicators |
Parameters |
|
|
Frequency Range |
632-661.25MHz |
|
|
Number of Channels |
100 |
|
|
Frequency Step |
250KHz |
|
|
Dynamic Range |
82dB |
|
|
Maximum Frequency Deviation |
±45KHz |
|
|
Audio Response |
120Hz-15KHz (±3dB) |
|
|
Comprehensive S/N Ratio |
>70dB |
|
|
Comprehensive Distortion |
≤1% |
|
|
Operating Temperature |
-10°C - +40°C |
|
|
Effective Range |
Up to 300m (in open environment) |
|
|
Package Dimensions (L×W×H) |
530×335×330mm |
|
|
Receiver |
Wireless Connector |
BNC/50Ω |
|
Sensitivity |
≤-95dBm |
|
|
Function Display Mode |
Display screen |
|
|
Operating Power |
DC12V, 600mA |
|
|
Package Dimensions (L×W×H) |
530×335×100mm |
|
|
Machine Dimensions |
430×176×44mm |
|
|
Gross Weight |
3.9kg |
|
|
Net Weight |
2.3kg |
|
