PAVA9002 Fire Alarm Audio
Haqqında

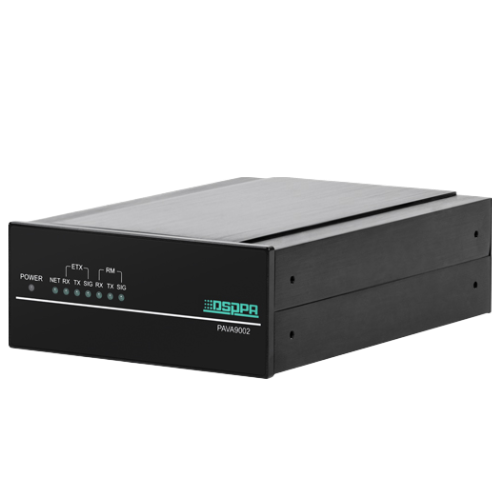

PAVA9002 Fire Alarm Audio Notification System Network Control Terminal
● Wall-mounted, with a black iron chassis.

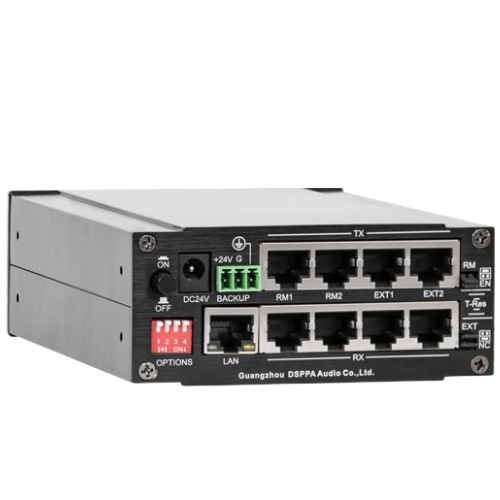

● With dual RJ45 network interfaces for hand-in-hand connection.
● With DIP settings for easy binding to other devices and mode selection.
● Support expansion amplifier receiving and decoding mode, support LAN and can work across network segments. A single terminal can be connected to 1-30 expansion amplifiers.
● Support host sending mode. Using multicast mode, it supports LAN only, with low latency of 100-200ms. The whole system can support 1-30 expansion amplifiers.
● Support host receiving mode. Using unicast mode, it supports LAN. The whole system can support up to 8 microphones.
● Support main/backup power supply and automatic switching.
Ətraflı
|
Model |
PAVA9002 |
|
|
Remote Paging Microphone - Network Control Terminal |
Remote Paging Sending Mode Interface (sending audio signals to the host) |
TX RM1-2 (TX RM green indicator light on the front panel is on) |
|
Input Sensitivity (RJ45 Interface) |
±3000mV (±300mV) |
|
|
RM Bus Power Supply |
DC48V (±5V) |
|
|
Expansion Amplifier - Network Control Terminal |
Expansion Amplifier Receiving Mode Interface (receiving audio signals from the host) |
RX EXT1-2 (RX EXT green indicator light on the front panel is on) |
|
Input Sensitivity (RJ45 Interface) |
±1500mV (±150mV) |
|
|
Host - Network Control Terminal |
Host Receiving Mode Interface (receiving audio signals from the remote paging microphone) |
RX RM1-2 (RX RM green indicator light on the front panel is on) |
|
Input Frequency Response |
100Hz～12kHz (±3dB) |
|
|
Sending Mode Interface (sending audio signals to the expansion amplifier) |
TX EXT1-2 (TX EXT green indicator light on the front panel is on) |
|
|
Input Frequency Response |
50Hz~16kHz (±3dB) |
|
|
Distortion (Within Frequency Response) |
<1% |
|
|
S/N Ratio A-Weighted |
≥76dB |
|
|
Operating Voltage Range |
DC21V-28V |
|
|
Power Supply |
Rated power supply DC24V/2.5A (±3V), backup power supply DC24V/2.5A |
|
|
Host Sending Mode Interface Output Level (RJ45 Interface) |
±1500mV (±150mV) |
|
|
Host Sending Mode Microphone Interface Output Level (RJ45 Interface) |
±3000mV (±300mV) |
|
|
Adapter Operating Power |
AC110V-240V 50/60Hz |
|
|
Operating Temperature |
-20℃~+50℃ |
|
|
Operating Humidity |
20%~80% relative humidity, non-condensing |
|
|
Package Dimensions |
285*231*100mm |
|
|
Machine Dimensions |
165*115*55mm |
|
|
Gross Weight |
2.0kg |
|
|
Net Weight |
0.65kg |
|
