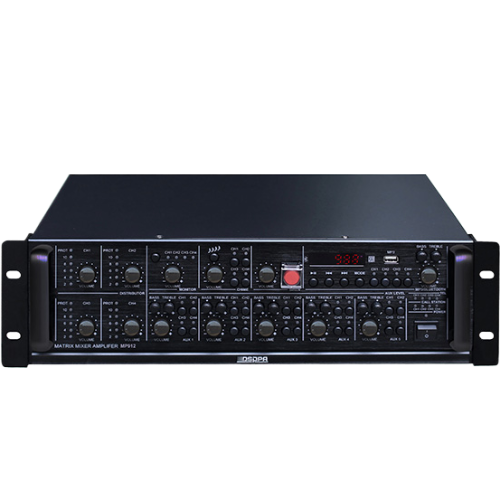

MP912 4x4 Matrix Mixer Amplifier
● Built-in 4 separate amplifier outputs, each channel RMS 120W
● 5 AUX inputs, 3 balanced Mic input with phantom power supply
● 4 remote paging stations, support cascaded linkage
● Each AUX and Mic input with volume and Bass & Treble control
● Each channel can play different audio source and has AUX output for power extension
● Support TEL input, built-in chime and one touch emergency alarm
● 70V/100V & 4-16 Ω flexible speaker output
|
Model |
MP912 |
|
Rated output power |
120W×4 |
|
Loudspeaker output |
4-16Ω, 70V, 100V |
|
Input sensitivity and input impedance |
AUX1, AUX2, AUX3: (3±0.5mV/600Ω) ~ (300±50mV /10KΩ) balanced input; AUX4, AUX5: 300±50 mV /10 KΩ unbalanced input; TEL: 300±50mV /10 K Ω; CALL STATION1, 2, 3: 2000±100 mV/10KΩ balanced input |
|
Tune |
Bass 100Hz ±10±2 dB; Treble 10000H ±10±2dB; |
|
Frequency response |
90Hz~20kHz |
|
Signal to noise ratio |
≥75 dB |
|
AUX1---4 output level |
2000mV±300mV/600Ω balanced output |
|
MP3 |
Play documents in the formats of MP3, WMA, WAC and ACC stored in 32GU disk or transferred byBluetooth |
|
Dimension of equipment (L×W×H mm) |
483×440×132mm |
|
Dimension of packing (L×W×H mm) |
550×550×215mm |
|
Net weight |
28kg |
|
Gross weight |
30.5kg |
