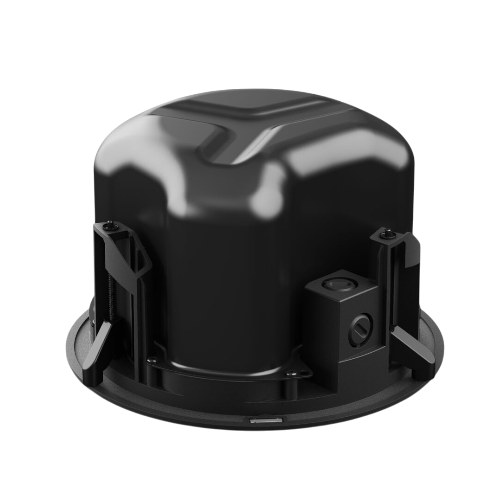

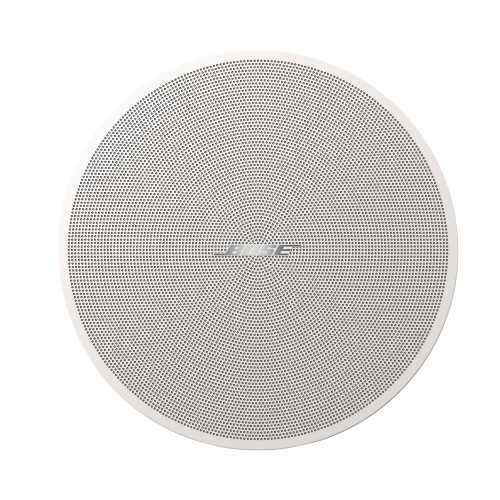

Bose DM3C Ceiling Speaker
DM3C Ceiling Speaker
| Power | 30W |
Detailed
| Model | DM3C |
| SINGLE LOUDSPEAKER PERFORMANCE | |
| Frequency Response (-3 dB) | 85 – 19,000 Hz |
| Frequency Range (-10 dB) | 75 – 20,000 Hz |
| Nominal Coverage Angle (1 – 4 kHz) | 135° |
| Nominal Coverage (1 – 10 kHz) | 135° |
| Power Handling, Long-term Continuous | AES transducer test Bose Professional extended-lifecycle test 30W 25W |
| Power Handling, Peak | AES transducer test Bose Professional extended-lifecycle test 120W 100W |
| Sensitivity SPL / 1 W @ 1 m2 | AES transducer test Bose Professional extended-lifecycle test 83dB 83dB |
| Calculated Maximum SPL @ 1 m3 | AES transducer test Bose Professional extended-lifecycle test 98dB 97dB |
| Calculated Maximum SPL @ 1 m, Peak | AES transducer test Bose Professional extended-lifecycle test 104dB 103dB |
| Crossover | 1.7 kHz (passive 2-way crossover) |
| Loudspeaker EQ | Not required. Bose Professional EQ voicing and SmartBass available. |
| Recommended High-Pass Protection | 80 Hz with minimum 24-dB/octave filter |
| Transformer taps | 70V: 3, 6, 12, 25 W, bypass 100V: 6, 12, 25 W, bypass |
| TRANSDUCERS | |
| Low Frequency | 1 × 83 mm (3.25 in) woofer |
| High Frequency | 1 × 20 mm (0.75 in) neodymium dome tweeter, coaxially mounted |
| Technology | Dispersion Alignment System, 127 mm (5 in) system diameter |
| Nominal Impedance | 8 Ω (transformer bypass) |
| PHYSICAL | |
| Enclosure Material | Engineered-plastics front baffle with integrated steel-formed backcan |
| Grille | Magnetically attached perforated steel, powder-coated finish, paintable, with safety-tether |
| Logo | Rotatable, removable |
| Color | White (RAL 9003), paintable |
| Environmental | Indoor only |
| Safety Agency | UL 1480A, UL Listed, in compliance with UL2043 for plenum-space installation, NFPA 70 & NFPA 90A, CE-compliant |
| Operating Temperature Range | 0 °C to 50 °C (32 °F to 122 °F) |
| Connectors | Euroblock 6-pin connector with loop-through, front-baffle mounted. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire. |
| Wire/Conduit Entry | Top & side wire entry point knockouts, allows for 9.5 mm (3/8 in) conduit |
| Suspension/Mounting | Three (3) QuickHold, spring-loaded mounting arms plus three (3) safety cable tabs |
| Maximum Ceiling Thickness | 39 mm (1.5 in) |
| Ceiling Cutout Size | 208 mm (8.2 in) |
| Product Dimensions (grille diameter × depth) | 255 × 154 mm (10.0 × 6.0 in) |
| Backcan Dimensions (diameter × depth) | 203 × 144 mm (8.0 × 5.7 in) |
| Net Weight, Loudspeaker with grille (single) | 2.68 kg (5.9 lb) |
| Net Weight, Tile-Bridge (single) | 0.8 kg (1.7 lb) |
| Shipping Weight (pair) | 8.7 kg (19.2 lb) |
| Included Accessories | Adjustable tile bridge, template |
| Optional Accessories | Rough-in pan (6-pack) |
