Price
564.00 azn
In stock
30 Pc

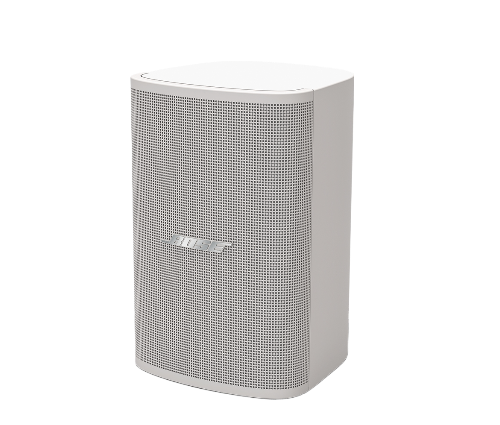

Bose DM3SE Speaker
DM3SE Speaker Loudspeaker 30W
- IP55
| Power | 30W |
Detailed
| Model | DM3SE |
| SINGLE LOUDSPEAKER PERFORMANCE | |
| Frequency Response (-3 dB) | 85 – 20,000 Hz |
| Frequency Range (-10 dB) | 75 – 20,000 Hz |
| Nominal Coverage Angle (1 – 4 kHz) | 140° conical |
| Nominal Coverage (1 – 10 kHz) | 135° conical |
| Power Handling, Long-term Continuous | AES transducer test Bose Professional extended-lifecycle test 30W 25W |
| Power Handling, Peak | AES transducer test Bose Professional extended-lifecycle test 120W 100W |
| Sensitivity SPL / 1 W @ 1 m2 | AES transducer test Bose Professional extended-lifecycle test 86dB 86dB |
| Calculated Maximum SPL @ 1 m3 | AES transducer test Bose Professional extended-lifecycle test 101dB 100dB |
| Calculated Maximum SPL @ 1 m, Peak | AES transducer test Bose Professional extended-lifecycle test 107dB 106dB |
| Crossover | 1.7 kHz (passive 2-way crossover) |
| Loudspeaker EQ | Not required. Bose Professional EQ voicing and SmartBass available. |
| Recommended High-Pass Protection | 80 Hz with minimum 24-dB/octave filter |
| Transformer taps | 70V: 3, 6, 12, 25 W, bypass 100V: 6, 12, 25 W, bypass |
| TRANSDUCERS | |

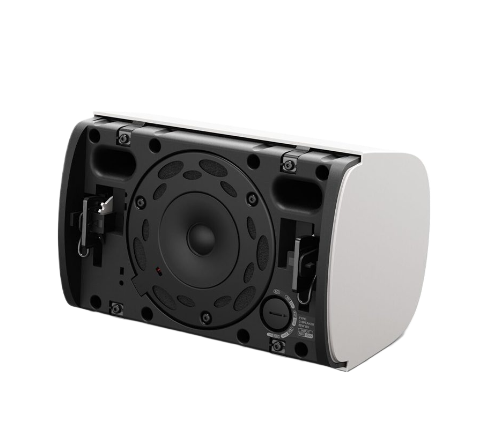

| Low Frequency | 1 × 83 mm woofer (3.25 in), weather-treated |
| High Frequency | 1 × 20 mm (0.75 in) neodymium dome tweeter, coaxially mounted, weather-treated |
| Technology | Dispersion Alignment System, 127 mm (5 in) system diameter |
| Nominal Impedance | 8 Ω (transformer bypass) |
| PHYSICAL | |
| Enclosure Material | Engineered plastics, highly UV fade-resistant |
| Bracket Material | Powder-coated steel |
| Grille | Perforated aluminum with powder-coat finish, tamper-resistant design, paintable |
| Logo | Rotatable, removable |
| Color | White |
| Environmental/Ingress Protection | Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather resistant input cover |
| Safety Agency | UL Listed, UL 1480A, NFPA 70, CE-compliant |
| Operating Temperature Range | -25 °C to 70 °C (-13 °F to 158 °F) |
| Connectors | Euroblock 6-pin connector with loop-through, mounted on rear. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire. |
| Suspension/Mounting | QuickHold mounting system with included U-bracket and two (2) screw inserts for use with optional pan & tilt bracket 4 preset mounting angles: 0°, 15°, 30°, 45° for wall or ceiling placement Insert for safety-tether attachment |
| Dimensions (H × W × D) | 232 × 154 × 155 mm (9.1 × 6.1 × 6.1 in) |
| Dimensions with Bracket (H × W × D) | 232 × 154 × 171 mm (9.1 × 6.1 × 6.7 in) |
| Net Weight, Loudspeaker with Grille & Bracket (Single) | 2.5 kg (5.6 lb) |
| Shipping Weight (Pair) | 7.2 kg (16.0 lbs) |
| Included Accessories | U-bracket, powder-coated steel |
| Optional Accessories | Surface-mount pan-and-tilt bracket, CMB S2 ceiling mount bracket |
