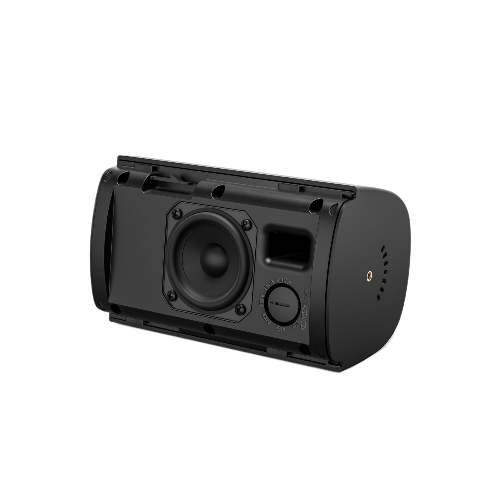

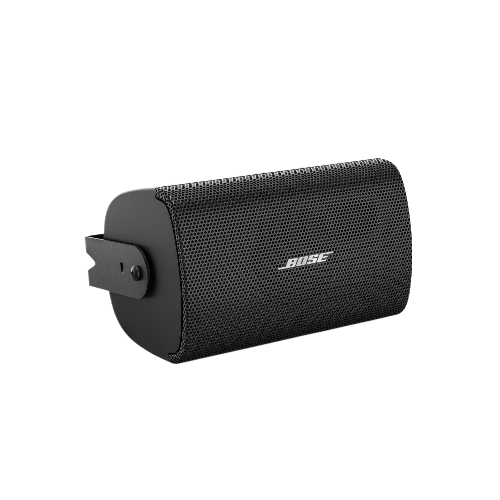

Bose FS2SE Wall Mount Speaker
FS2SE Wall Mount Speaker 16W
-
IP55
- EN54-24 Certified
| Power | 16W |
Detailed
| Model | FS2SE |
| SINGLE LOUDSPEAKER PERFORMANCE | |
| Frequency Response (-3 dB) | 95 – 16,000 Hz |
| Frequency Range (-10 dB) | 83 – 19,000 Hz |
| Nominal Coverage Angle (1 – 4 kHz) | 145° × 140° |
| Nominal Coverage (1 – 10 kHz) | 130° × 130° |
| Power Handling, Long-term Continuous | AES transducer test Bose Professional extended-lifecycle test 20W 16W |
| Power Handling, Peak | AES transducer test Bose Professional extended-lifecycle test 80W 64W |
| Sensitivity SPL / 1 W @ 1 m2 | AES transducer test Bose Professional extended-lifecycle test 87dB 87dB |
| Calculated Maximum SPL @ 1 m3 | AES transducer test Bose Professional extended-lifecycle test 100dB 99dB |
| Calculated Maximum SPL @ 1 m, Peak | AES transducer test Bose Professional extended-lifecycle test 106dB 105dB |
| Loudspeaker EQ | No Bose Professional EQ required when speaker used for general use. Bose Professional EQ Voicing and SmartBass available. EN 54-24 equalization is required for EN 54-24 use; refer to installation guide for details. |
| Recommended High-Pass Protection | 85 Hz with minimum 24-dB/octave filter |
| Transformer taps | 70V: 1, 2, 4, 8, 16 W, bypass 100V: 2, 4, 8, 16 W, bypass |
| TRANSDUCERS | |
| Full-Range Driver | 1 × 2.25-inch woofer (57 mm) |
| Nominal Impedance | 16 ohms (transformer bypass) |
| PHYSICAL | |
| Enclosure Material | Engineered plastics, highly UV fade-resistant |
| Bracket Material | Powder-coated steel |
| Grille | Perforated steel, powder-coated finish, tamper-resistant design |
| Logo | Rotatable, removable |
| Color | Black |
| Environmental/Ingress Protection | Rated for direct-exposure outdoor installations (IP55 per EN 60529; IP33C per EN 54-24). Suitable for use outdoors in wet locations. Includes weather-resistant input cover. Optional accessory aluminum grille for harsh environments to prevent red corrosion is available |
| Safety Agency | Certification: EN 54-24: 2008 for Voice Alarm Systems; UL 1480(A). For EN 54-24 specifications, refer to installation guide. EN 54-24 equalization required for EN 54-24 use. Installation: NFPA 70, NFPA 72, CSA C22.1 Section 32. |
| Operating Temperature Range | -25 °C to 70 °C (-13 °F to 158 °F) |
| Connectors | Euroblock 6-pin connector with loop-through, mounted on rear. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire. Includes input cover. |
| Suspension/Mounting | External U-bracket with bracket screws and two (2) screw inserts for use with optional surface-mount pan-and-tilt bracket or CMB S2 ceiling mount bracket. 7 preset mounting angles: 0°, +15°, +30°, or +45° for wall or ceiling placement Safety cable can be used with either of two (2) side M5 inserts |
| Dimensions (H × W × D) | 182 × 113 × 114 mm (7.1 × 4.4 × 4.5 in) |
| Dimensions with Bracket (H × W × D) | 196 × 113 × 135 mm (7.7 × 4.4 × 5.3 in) |
| Net Weight, Loudspeaker with Grille & Bracket (Single) | 1.43 kg (3.15 lb) |
| Shipping Weight (Pair) | 4.17 kg (9.2 lb) |
| Included Accessories | Each FS2SE includes one (1) logo for vertical orientation, one (1) U-Bracket and one (1) weather-resistant input cover |
| Optional Accessories | Aluminum grille kit (2-pack), surface-mount pan-and-tilt bracket, CMB S2 ceiling mount bracket, ceramic terminal and fuse kit (10-pack) |
