Price
599.00 azn
In stock
15 Pc

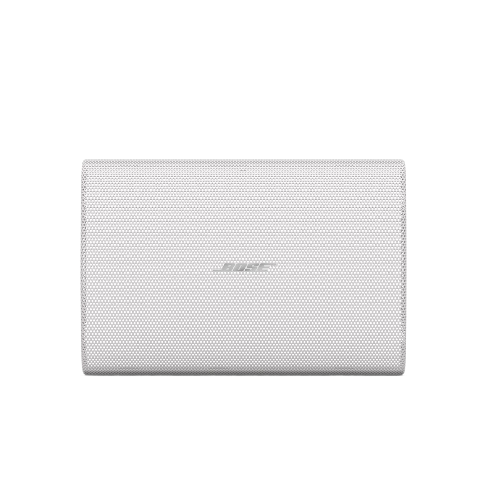

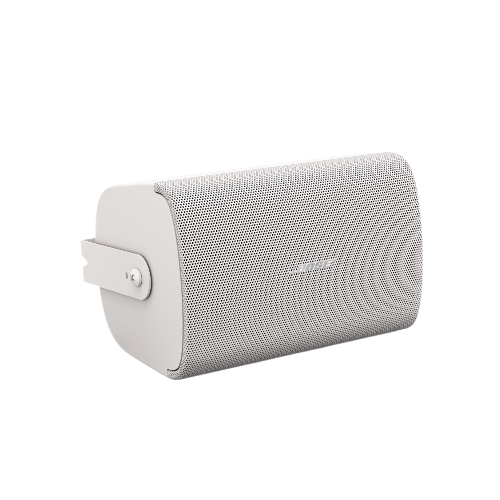

Bose FS4SE Speaker
FS4SE Speaker 40W
- IP55
- EN 54-24 Certified
| Power | 40W |
Detailed
| Model | FS4SE |
| SINGLE LOUDSPEAKER PERFORMANCE | |
| Frequency Response (-3 dB) | 80 – 16,000 Hz |
| Frequency Range (-10 dB) | 70 – 17,000 Hz |
| Nominal Coverage Angle (1 – 4 kHz) | 130° × 125° |
| Nominal Coverage (1 – 10 kHz) | 105° × 100° |
| Power Handling, Long-term Continuous | AES transducer test Bose Professional extended-lifecycle test 50W 40W |
| Power Handling, Peak | AES transducer test Bose Professional extended-lifecycle test 200W 160W |
| Sensitivity SPL / 1 W @ 1 m2 | AES transducer test Bose Professional extended-lifecycle test 89dB 89dB |
| Calculated Maximum SPL @ 1 m3 | AES transducer test Bose Professional extended-lifecycle test 106dB 105dB |
| Calculated Maximum SPL @ 1 m, Peak | AES transducer test Bose Professional extended-lifecycle test 112dB 111dB |
| Loudspeaker EQ | No Bose Professional EQ required when speaker used for general use. Bose Professional EQ Voicing and SmartBass available. EN 54-24 equalization is required for EN 54-24 use; refer to installation guide for details. |
| Recommended High-Pass Protection | 70 Hz with minimum 24-dB/octave filter |
| Transformer taps | 70V: 2.5, 5, 10, 20, 40 W, bypass 100V: 5, 10, 20, 40 W, bypass |
| TRANSDUCERS | |
| Full-Range Driver | 1 × 4.5-inch woofer (114 mm) |
| Nominal Impedance | 8 ohms (transformer bypass) |
| PHYSICAL | |
| Enclosure Material | Engineered plastics, highly UV fade-resistant |
| Bracket Material | Powder-coated steel |
| Grille | Perforated steel, powder-coated finish, tamper-resistant design |
| Logo | Rotatable, removable |
| Color | Black (similar to RAL 9005) |
| Environmental/Ingress Protection | Rated for direct-exposure outdoor installations (IP55 per EN 60529; IP33C per EN 54-24). Suitable for use outdoors in wet locations. Includes weather-resistant input cover. Optional accessory aluminum grille for harsh environments to prevent red corrosion is available. |
| Safety Agency | Certification: EN 54-24: 2008 for Voice Alarm Systems; UL 1480(A). For EN 54-24 specifications, refer to installation guide. EN 54-24 equalization required for EN 54-24 use. Installation: NFPA 70, NFPA 72, CSA C22.1 Section 32 |
| Operating Temperature Range | -25 °C to 70 °C (-13 °F to 158 °F) |
| Connectors | Euroblock 6-pin connector with loop-through, mounted on rear. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire. Includes input cover. |
| Suspension/Mounting | External U-bracket with bracket screws and two (2) screw inserts for use with optional surface-mount pan-and-tilt bracket or CMB S2 ceiling mount bracket. 7 preset mounting angles: 0°, +15°, +30°, or +45° for wall or ceiling placement Safety cable can be used with either of two (2) side M5 inserts. |
| Dimensions (H × W × D) | 254 × 171 × 174 mm (10.0 × 6.7 × 6.8 in) |
| Dimensions with Bracket (H × W × D) | 273 × 171 × 196 mm (10.7 × 6.7 × 7.7 in) |
| Net Weight, Loudspeaker with Grille & Bracket (Single) | 3.08 kg (6.80 lb) |
| Shipping Weight (Pair) | 8.32 kg (18.35 lb) |
| Included Accessories | Each FS4SE includes one (1) logo for vertical orientation, one (1) U-Bracket and one (1) weather-resistant input cover |
| Optional Accessories | Aluminum grille kit (2-pack), surface-mount pan-and-tilt bracket, CMB S2 ceiling mount bracket, ceramic terminal and fuse kit (10-pack) |
