Price
48.00 azn
In stock
60 Pc

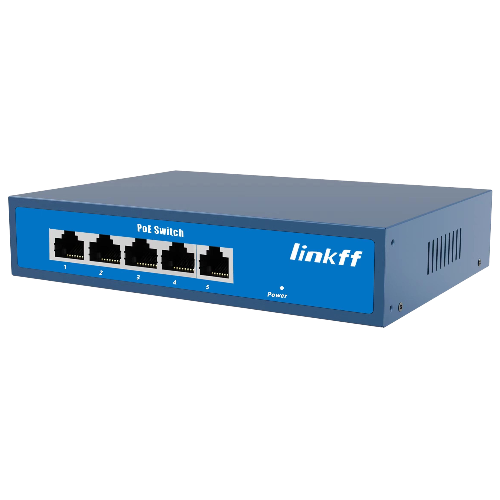

Linkff PoE Switch FF-M41D
FF-M41D 4*1000M POE Port+1*1000M Uplinked
- One Port≤30W
- Full Port≤65W
- AC 100V-240V Short circuit protection
- Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode
- Distance:≤150M
- AI Extended Mode
| Port Number | 4 Port |
| Port speed | 1000mbp/s |
| PoE | PoE |
| PoE power | 65 W |
Detailed
|
Model |
FF-M41D |
|
POE Port |
1 to 4 support IEEE802.3AF/AT Standard |
|
Output Power |
15.4W/30W IEEE802.3af/at |
|
Power Pin |
Both 1/2+、3/6- and 4/5+7/8- |
|
Whole Power |
≤65W (52V 1.5A) |
|
POE Protocol |
IEEE 802.3af/IEEE 802.3at |
|
POE Type |
End-span |
|
Power Distance |
≤100m |
|
Network Standard |
IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at |
|
Network Medium |
10/100BASE-TX:5 class and above non shielded twisted pair |
|
Data Distance |
≤100m |
|
Switch Capability |
20Gbps |
|
SFP |
1CH SFP 100/1000Mbps |
|
Forwarding Mode |
Store and forward |
|
Forwarding Rate |
10BASE-T:14880PPS/port 100BASE-tx：14800pps/port |
|
MAC Address |
MAC address table 1K |
|
Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
|
LED Indicator |
Each port occupied 1 LINK/ACT.100Mbps, POE Status Indicator, Whole power indicator |
|
Working Environment |
Working temperature：-10°-- 55°C |
|
Weight |
0.85kg |
|
Size |
125×115×33(L*W*H)mm |
