Price
818.00 azn
In stock
20 Pc

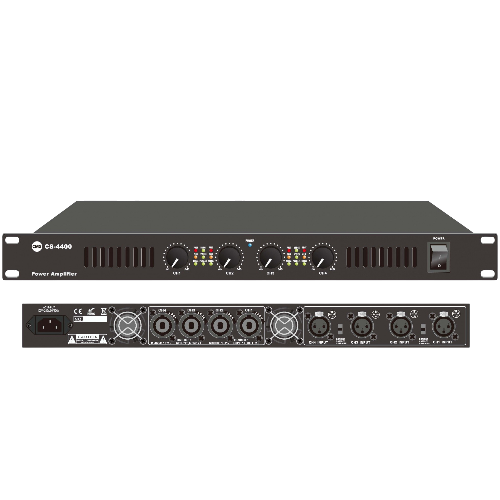

CMX CS-4300 Power Amplifier
CS-4300 4 Channel Pro Sound Power Amplifier 4×300W
- Switching power technology digital Class-D power amplifier
- Green technology amplifier of 85% efficiency
- With PWM special power circuit to ensure excellent cooling system
- 19” universal rack mount type in 1U height
- Support stereo output at 8Ω & 4Ω
- Output mode selector of stereo, parallel and bridge
- 4×Input by balanced XLR male connector
- 4×Output by balanced Speakon female connector
- Complete protection include clip, high temp, overload and short circuit
| Power | 300 W |
Detailed
|
Model |
CS-4300 |
|
Description |
Four Channel Power Amplifier |
|
Rated Output 4Ω |
4×500W |
|
Rated Output 8Ω |
4×300W |
|
Bridge Out 4Ω |
2×900W |
|
Bridge Out 8Ω |
2×500W |
|
Frequency Response |
20Hz~20KHz |
|
THD |
<0.3% |
|
S/N Ratio |
>105dB |
|
Input Impedance |
20KΩ (bal.), 10KΩ (unbal.) |
|
Crosstalk |
>75dB |
|
Connector |
Input by XLR, 1V, 20KΩ (bal.), 10KΩ (unbal.) |
|
Power Supply |
AC 100~240V, 50/60Hz |
|
Dimension |
484×375×44mm |
|
Net Weight |
5.5kg |
